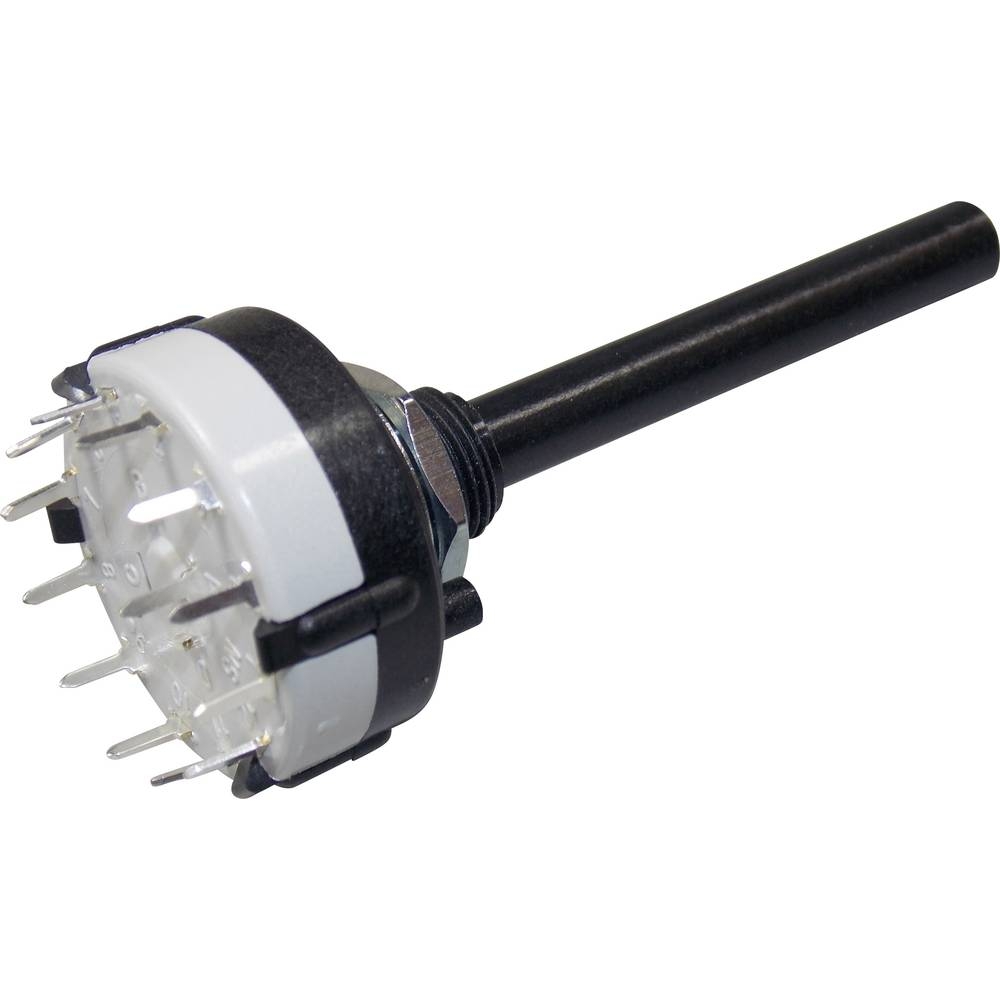

PREKLOPNIK PLASTICNI 1X12 PRINT

PREKLOPNIK PLASTICNI 1X12 PRINT



  • Manufacturer:
  • Type of switc: hrotary
  • Number of all positions:12
  • Stable positions number: 12-position
  • DC contacts rating (at resistance load): 0.15A / 250VDC
  • Poles number: 1
  • Indexed positions: 30°
  • Operating temperature: -30…85°C
  • Leads: for PCB
  • Switching method(item in brackets is instantaneous): BBM (non-shorting)
  • Contact material: brass
  • Body material: polyamide
  • Mechanical durability:10000cycles
  • Shaft surface: smooth
  • Min. insulation resistance: 999MΩ
  • Shaft diameter: 6mm
  • Shaft length: 50mm
  • Fastening thread: M10x0,75
  • Switching torque: 8.6Ncm
  • Contact plating: silver plated
Product Code: PREKLOPNIKPLASTICNI1X12PRINT | PREKLplaDSP|DS1PC Šifra proizvoda: PREKLplaDSP Kategorije: ,

350.00 RSD

Opis proizvoda

PREKLOPNIK PLASTICNI 1X12 PRINT



  • Manufacturer:
  • Type of switc: hrotary
  • Number of all positions:12
  • Stable positions number: 12-position
  • DC contacts rating (at resistance load): 0.15A / 250VDC
  • Poles number: 1
  • Indexed positions: 30°
  • Operating temperature: -30…85°C
  • Leads: for PCB
  • Switching method(item in brackets is instantaneous): BBM (non-shorting)
  • Contact material: brass
  • Body material: polyamide
  • Mechanical durability:10000cycles
  • Shaft surface: smooth
  • Min. insulation resistance: 999MΩ
  • Shaft diameter: 6mm
  • Shaft length: 50mm
  • Fastening thread: M10x0,75
  • Switching torque: 8.6Ncm
  • Contact plating: silver plated
